EQUIPMENT

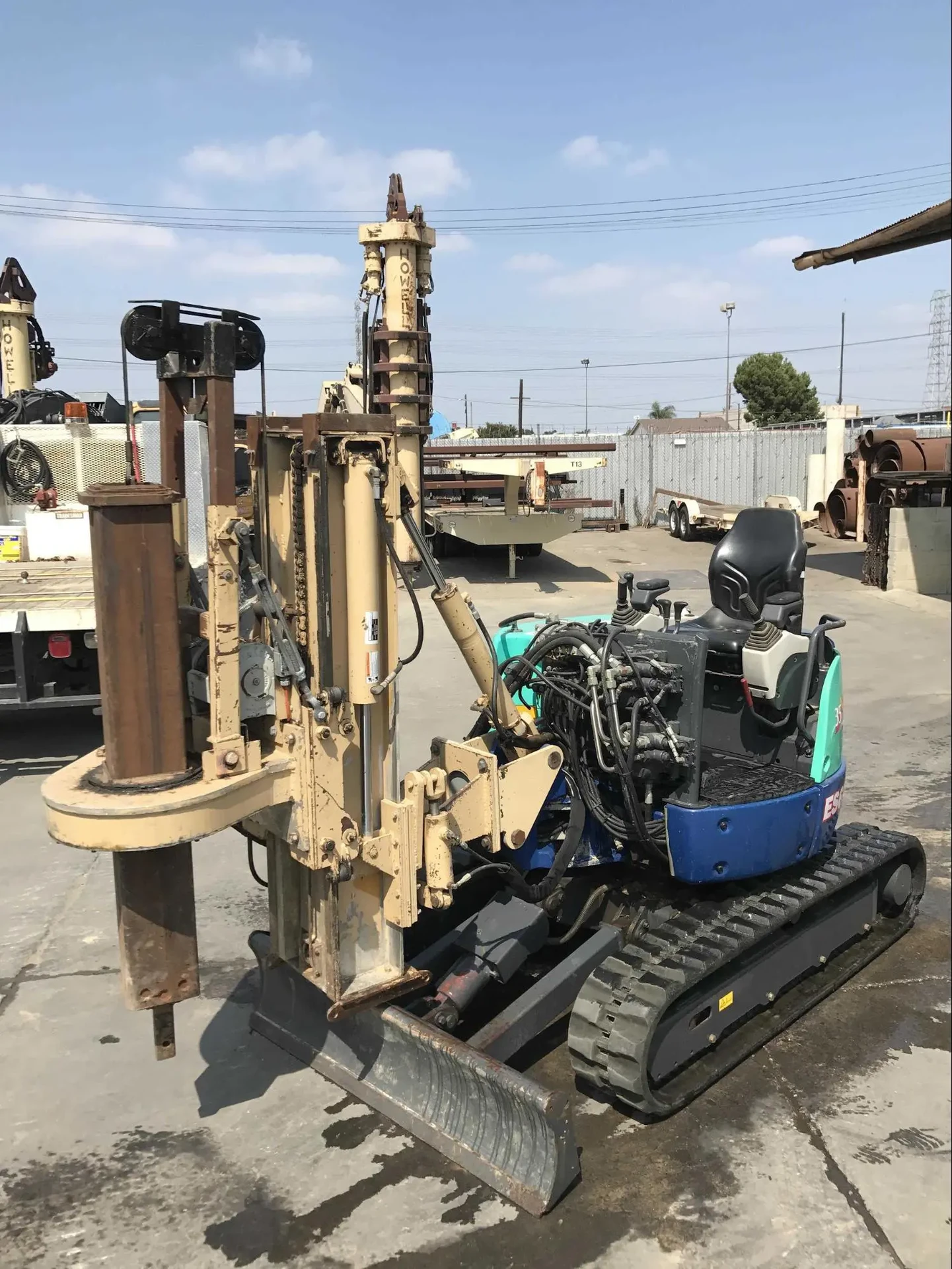

M2 Drill Unit mounted on IHI expandable undercarriage
Technical Specs
General Machine Dimensions
Track Type
Rubber
Cab ht.
7’9”
Track Meas.
7’3”
L
5’0”
W
w/Blade
8’7”
L
5’0”
W
w/Cage
8’2”
L
5’0”
W
Drill ht.
6’9”
Reach & Working Range
Reach Front of Tracks
8’7”
Overhang End of Tracks
2”
Drilling Performance
Max depth
45’0”
Max Diam.
3’0”
Max HP
26 HP
